Description

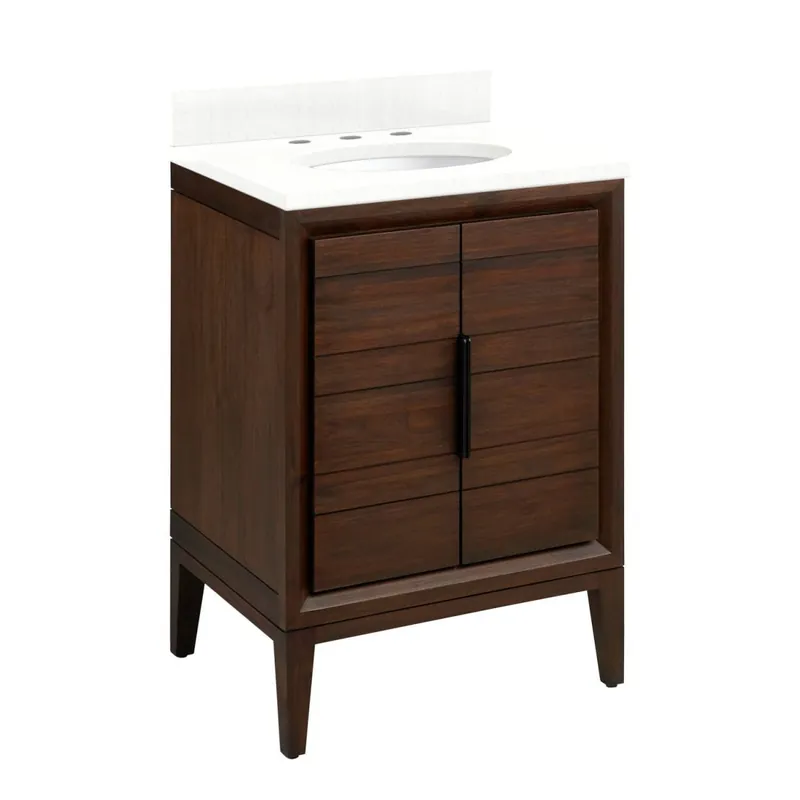

Signature Hardware 950734-24-UM-8 Included Components:
- Teak wood vanity cabinet with 2 doors and 1 shelf
- Granite vanity top with a single porcelain sink
- Mirror is not included and must be purchased separately
- Faucet is not included and must be purchased separately
- Covered under Signature Hardware’s 25 year limited warranty
Cabinet Features:
- Constructed from teak wood
- Free standing installation – vanity is seated on the floor with wall anchors
- Double door design provides easy access to storage space
- Vanity cabinet includes matching decorative hardware
Vanity Top Features:
- Constructed of granite
- Vanity top includes a single basin sink constructed of porcelain
- (3) pre-drilled faucet holes
- Rear drain location increases available space under the sink
Cabinet Specifications:
- Cabinet Width: 22″ (from left to right)
- Cabinet Height: 22″ (from top to bottom)
- Cabinet Depth: 19-3/8″ (from front to back)
- Number of Doors: 2
- Number of Shelves: 1
Vanity Top Specifications:
- Vanity Top Width: 25″ (left edge to right edge)
- Vanity Top Depth: 22″ (front edge to back edge)
- Backsplash Height: 4″
- Number of Basins: 1
- Sink Measurements: 15-3/4″ L x 11-1/2″ W x 5″ H
- Sink Basin Measurements: 16″ L x 12-1/2″ W x 6″ D
- Number of Faucet Holes: 3
- Faucet Centers: 8″ (distance between the installation holes for the faucet handles)
|
Backsplash Height |
4in. |
|
Basin Depth |
6in. |
|
Basin Length |
16in. |
|
Basin Width |
12.5in. |
|
Cabinet Depth |
19.38in. |
|
Cabinet Height |
22in. |
|
Cabinet Width |
22in. |
|
Depth |
21.13in. |
|
Faucet Centers |
8in. |
|
Faucet Hole Size |
1.5in. |
|
Height |
34.38in. |
|
Nominal Width |
24in. |
|
Product Weight |
135.29lbs. |
|
Sink Cutout Length |
15.75in. |
|
Sink Cutout Width |
11.5in. |
|
Sink Height |
5in. |
|
Sink Length |
15.75in. |
|
Sink Width |
11.5in. |
|
Vanity Top Depth |
22in. |
|
Vanity Top Thickness |
3in. |
|
Vanity Top Width |
25in. |
|
Width |
24in. |
Dimensions and Measurements
|
Backsplash Height |
4in. |
|
Basin Depth |
6in. |
|
Basin Length |
16in. |
|
Basin Width |
12.5in. |
|
Cabinet Depth |
19.38in. |
|
Cabinet Height |
22in. |
|
Cabinet Width |
22in. |
|
Depth |
21.13in. |
|
Faucet Centers |
8in. |
|
Faucet Hole Size |
1.5in. |
|
Height |
34.38in. |
|
Nominal Width |
24in. |
|
Product Weight |
135.29lbs. |
|
Sink Cutout Length |
15.75in. |
|
Sink Cutout Width |
11.5in. |
|
Sink Height |
5in. |
|
Sink Length |
15.75in. |
|
Sink Width |
11.5in. |
|
Vanity Top Depth |
22in. |
|
Vanity Top Thickness |
3in. |
|
Vanity Top Width |
25in. |
|
Width |
24in. |
Included Components
|
Backsplash Included |
Yes |
|
Cabinet Hardware Included |
Yes |
|
Faucet Included |
No |
|
Light Included |
No |
|
Mirror Included |
No |
|
Sink Included |
Yes |
|
Vanity Top Included |
Yes |
|
Bridge Drawer Included |
No |
|
Drain Assembly Included |
No |
|
Installation Hardware Included |
Yes |
|
Medicine Cabinet Included |
No |
|
Sidesplash Included |
No |
|
Vanity Legs Included |
Yes |
Characteristics and Features
|
Assembly Required |
Yes |
|
Drain Placement |
Rear |
|
Faucet Mounting Type |
Widespread |
|
Installation Type |
Free Standing |
|
Number Of Basins |
1 |
|
Number Of Drawers |
0 |
|
Overflow |
Yes |
|
Sink Shape |
Oval |
|
Theme |
Modern |
|
Wood Species |
Teak |
|
Cabinet Material |
Wood |
|
Faucet Holes |
3 |
|
Finished Back |
Yes |
|
Made of Solid Wood |
Yes |
|
Number Of Doors |
2 |
|
Number Of Shelves |
1 |
|
Sink Material |
Porcelain |
|
Soft Close Hinges |
Yes |
|
Vanity Top Material |
Granite |
Warranty and Product Information
|
Approved for Commercial Use |
Yes |
|
Commercial Warranty |
5 Year Limited |
|
Manufacturer Warranty |
25 Year Limited |
|
Collection |
Aliso |
|
Country Of Origin |
China, Vietnam |
